Export PVC Formwork Templates Waterproof And Moisture Proof Customizable

Standard Size : 1220×2440mm / 915×1830mm

Model Number : PVC Formwork

Density : 0.7

MOQ : 100㎡

Packaging Details : Loose Packing or Pallet packing

Thickness : 12mm / 15mm / 18mm / 20mm

Certification : ISO 9001/14001、GB 8624 B1

Water Absorption : ≤0.1%

Supply Ability : Monthly Capacity 200×40HQ

Payment Terms : L/C,T/T,D/P

Brand Name : Jiusen Building Materials

Flexural Strength : ≥15 MPa

Place of Origin : CHINA

Surface Hardness : ≥45 Shore D

Price : Negotiable price

Reuse Cycles : ≥50 times

Delivery Time : 3–7 days (stock), 7–15 days (custom)

Contact Now

Export PVC Formwork Templates Waterproof And Moisture Proof Customizable

PVC Formwork Product Introduction

PVC formwork is light, strong, impact-resistant, wear-resistant, waterproof, corrosion-resistant, and dimensionally stable. It's perfect for pouring concrete for walls, beams, slabs, bridges, culverts, and more, making it super versatile. Compared to traditional formwork, PVC formwork is easy to handle, quick to assemble and disassemble, doesn’t need mold release agents, and leaves smooth, even concrete surfaces that cut down on extra plastering work, boosting both quality and efficiency. Plus, it’s non-toxic, odorless, reusable—usually over 50 times—and can be recycled after its service life, saving materials and cutting overall project costs while being eco-friendly.

No.	Item	Specification
1	Standard Size	1220×2440mm / 915×1830mm
2	Thickness	12mm / 15mm / 18mm / 20mm
3	Material	PVC (Polyvinyl Chloride)
4	Density	0.7
5	Flexural Strength	≥15 MPa
6	Surface Hardness	≥45 Shore D
7	Water Absorption	≤0.1%
8	Working Temperature	-10℃ ~ 70℃
9	Reuse Cycles	≥50 times
10	Features	Waterproof, acid alkali resistant, easy demolding, workable
11	HS Code	3925900000

PVC Formwork Compared To Other Formwork

Item	PVC Formwork	Timber Formwork (Plywood)	Steel Formwork
Material	Hard PVC with flame retardant & anti-aging additives	Multi-layer pine/poplar plywood, film-faced	Q235 cold-rolled steel plate
Weight	Light, approx. 12–15kg/㎡	Medium, approx. 18–25kg/㎡	Heavy, approx. 40–50kg/㎡
Reuse Cycles	30–50 times, recyclable	3–8 times, easy damage	30–50 times, long service life
Water Absorption & Deformation	Non-absorbent, no deformation, no cracking	Water absorption, swelling, deformation, delamination	Non-absorbent, easy rust & deformation
Corrosion Resistance	Acid & alkali resistant, anti-mildew	Rot & insect infestation in wet areas	Easy rust, regular maintenance required
Surface Finish	Smooth & dense, fair-faced concrete effect	Fairly smooth with wood grain, plastering needed	High precision, mirror finish
Stripping Difficulty	Very easy, no release agent needed	Moderate, release agent required	Hard, easy sticking, special release agent needed
Fire Resistance	Class B2 flame retardant, self-extinguishing	Flammable, non-flame-retardant	Non-combustible, high temperature resistant
Workability	Sawable, drillable, nailable, easy on-site cutting	Easy to cut & nail, highly flexible	Hard to cut, professional equipment needed
Initial Cost	Medium–High	Low	High
Amortized Cost	Low ($0.14 - 0.28/time·㎡)	High ($0.69 - 1.11/time·㎡)	Medium ($0.42 - 0.56/time·㎡)
Environmental & Recycling	100% recyclable	Non-recyclable, construction waste	Recyclable, but low residual value
Application	Residential, factory, municipal, water conservancy, coastal/humid projects	Low-rise, small-scale, irregular structures, rural housing	High-rise, bridge, tunnel, large public buildings,high-precision projects

PVC Formwork Advantages(1-6 )

1. Waterproof and moisture-proof, corrosion and weather-resistant, very adaptable

PVC formwork is a polymer waterproof material that doesn’t absorb water, doesn’t mold, and isn’t affected by rain, completely solving the problems of traditional wooden formwork swelling, deforming, bulging, and cracking when it gets damp.

2. The surface is smooth, and the concrete forms well.

The PVC formwork board has a dense, smooth surface and high flatness. You don’t need to apply a release agent when demolding, and after removing the mold, the concrete surface is smooth, solid, without honeycombing or rough patches, and has no joint marks. It looks really good.

3. Higher turnover means lower overall costs.

Traditional wooden formwork can only be reused 3–8 times, and bamboo plywood about 10 times, while PVC formwork is hard, impact-resistant, and not easily damaged. Under normal proper construction, it can be reused more than 50 times, with very little wear and tear.

4. Lightweight, easy to install, and saves labor.

PVC formwork is lightweight, so a single person can carry, cut, and install it without needing large machinery. It can be freely sawed, drilled, and grooved, making it suitable for construction of various irregular components like walls, beams, columns, slabs, tunnels, box culverts, and bridges.

5. Stable in size, won't deform, and easy to work with accurately.

It has a low coefficient of thermal expansion and a stable structure, so it's barely affected by changes in temperature or humidity, and you won't see issues like mold swelling, shrinking, or warping.

6. Green and eco-friendly, recyclable

Formaldehyde-free, no harmful emissions, dust-free during construction, meets green building standards.

PVC Formwork Packing

1. Loose Packing: (Load more quantity and save cost)

2. Pallet packing: (Easy to Load and Lade)

Export PVC Formwork Templates Waterproof And Moisture Proof Customizable

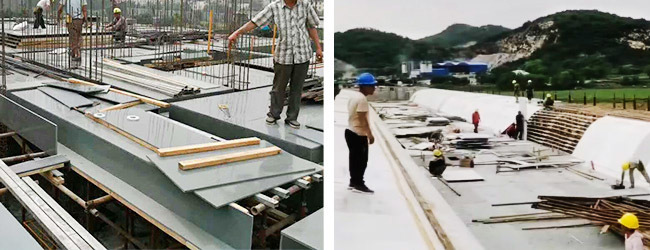

PVC Formwork construction

Export PVC Formwork Templates Waterproof And Moisture Proof Customizable

PVC Formwork Workshop

Export PVC Formwork Templates Waterproof And Moisture Proof Customizable

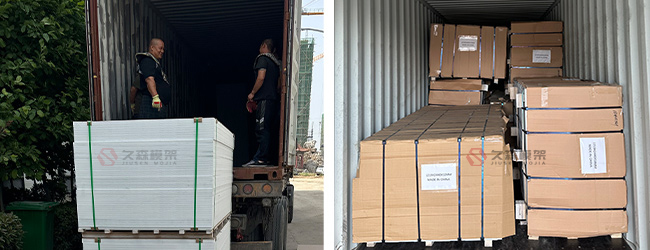

PVC Formwork Delivery

Export PVC Formwork Templates Waterproof And Moisture Proof Customizable

Export PVC Formwork Templates Waterproof And Moisture Proof Customizable Images
